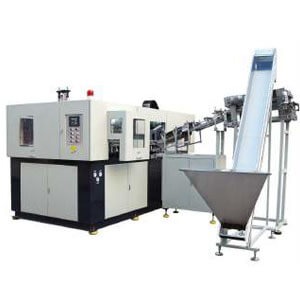

Automatic Pet Blow Molding Machine

Send Email /SMS Enquiry

MACHINE UNIT - ASBM -2C
OUTPUT RATE Pcs/hr (For Pet Bottle) 2000-2400
MOULDING UNIT
TIE BAR THICKNESS Mm 38
MOULD OPEN MAX. Mm 150
MOULD THICKNESS MAX. Mm 165
MOULD LENGTH MAX. Mm lbw 350
MOULD WIDTH MAX. Mm 240
PLATEN SIZE Mm -
VOLUME MAX Liters 2
VOLUME MIN ml 60
STRETCHING STROKE Mm 200+250
NUMBER OF CAVITY   2
CAVITY CENTRE DISTANCE Mm 120
U
CLAMPING SYSTEM   MECHANICAL
CLAMPING FORCE Ton 15
HYDRAULIC OIL   -
HYDRAULIC MOTOR   -
LOCKING CYL. STROKE Mm 75
LECTRICAL NT
IR HEATER SPEC. (Short Wave)   230v,1 kw
  Hp -
FREE ROTATION PREFORM MOTOR AC Hp 0.5
TOTAL MACHINE POWER (Full Load) Kw 21KW
POWER WITH OTHER ACCESSORIES (Full Load) Kw 62 KW
ENERALS
MACHINE WEIGHT Ton I 4
CCESSORIES ... _
1.AIR COMPRESSOR
HIGH PRESSURE Hp 25
HIGH PRESSURE CFM Cfm 60
LOW PRESSURE Hp 20
LOW PRESSURE CFM Cfm 70
2.AIR DRYER
HIGH PRESSURE cfm 80
LOW PRESSURE cfm 44
3.CHILLER Tr 2
4.COOLING TOWER Tr -
5.HYDRAULIC OIL Liters -
6.HEAVY DUTY SWITCH (for machine only) Amp 100
