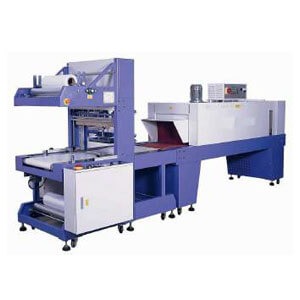

Semi Automatic Shrink Wrapping Machine

Send Email /SMS Enquiry

Backed by the team of experienced professionals, we are providing an extensive array of Semi Automatic Shrink Wrapping Machine. Our provided wrapping machine is used for packing shrink bags & valued in the market for its performance. This wrapping machine is developed using finest material and sophisticated technology. Clients can avail this wrapping machine in varied specifications for fulfill their varied need.

Features:
  • Precisely designed
  • Smooth functioning
  • Optimum quality
Specifications:
  • Sealing Length: 650 mm
  • Sealing with cut facility suitable for LDPE material
  • Pneumatically operated sealing system
  • Air Pressure req.: 6 Kg.sq/cm
  • M.O.C: In M.S Duly Powder Coated
  • Pneumatic film unwinding system will be provided
  • Two roll feeding system for Film
  • Timer based sealing, cooling
  • Power: 230V, 50 Hz, 15 Amps
  • Sealing watts: 1.2 K.W
  • Rubber coated rollers with locking for film holding in top and bottom
  • Pusher: Pneumatic pusher works at 4-5Kg. pressure
  • Chamber Size: 500 mm(W) x 450 mm(H)
  • Hot Air Chamber Size: 500 mm(W) X 450mm(H) X 1000 mm(L)
  • Cooling Chamber: 500 mm(W) X 450 mm(H) X 400 mm(L)
  • Machine Dimension: 1000 mm(W) X 1000 mm(H) X 2000 mm(L)
  • Conveyor: Roller type
  • Conveyor Drive: 1 H.P Variable Speed Drive, A.C Drive
  • Heavy Duty chains with pins for conveyor assembly
  • Heater: 12 K.W Open type Porcelain heaters for better efficiency and
  • Faster heating.
  • Digital Temperature controller with sensor to control the chamber temperature
  • With PID Controller system
  • Hot Air Blower: High velocity with 'F' class insulation, ¼ H.P
  • Cooling Fan: 200-Watts capacity
  • Heavy Duty Gear box with the motor
  • Separate indicator for Input lines, Blower, Cooling fan, and Motor
  • Interlocking system between the controls for safety reasons
  • Insulation: double class, Padded Glass Wool insulation for better heat insulation
  • Aluminum Heat resistant coating for the Hot Air Chamber
  • M.O.C: In Mild Steel duly Powder Coated
  • Power: 440V, 50Hz, 3 Phase
